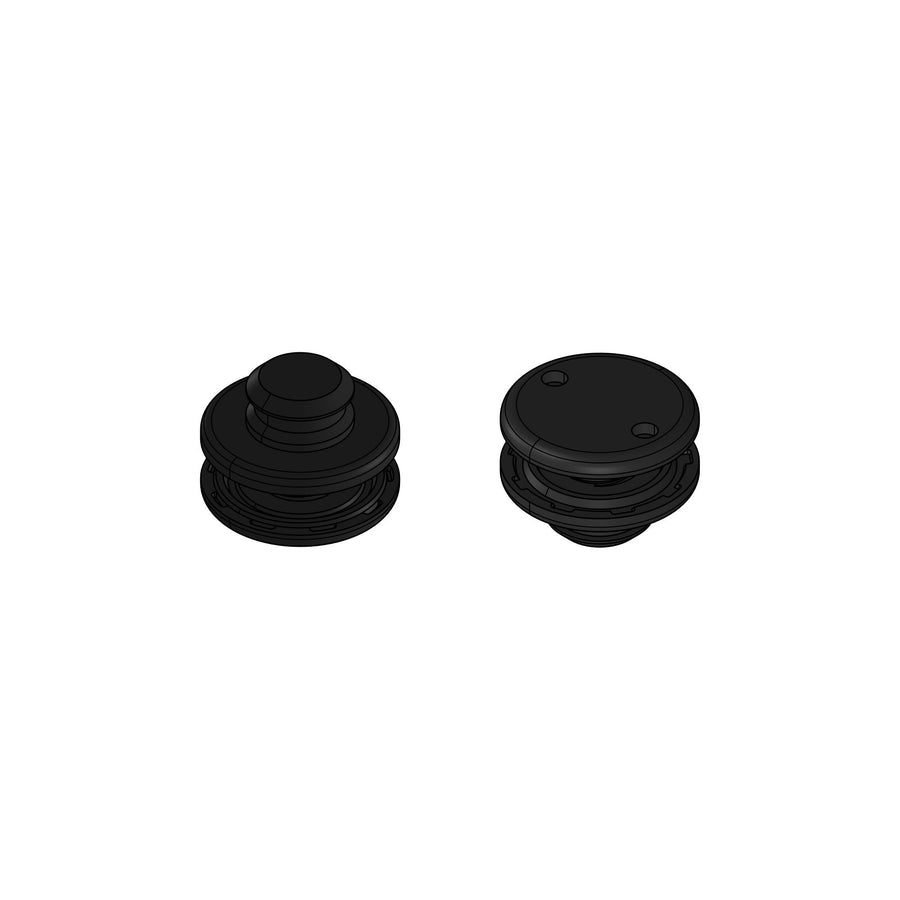

Fidlock® SNAP Male S Screw High
The SNAP male S screw high is designed for material thicknesses from 2.8 to 4.0 mm. This is achieved by a longer threaded shaft on the screw cap, which is also the difference to the SNAP male S screw low. It is compatible with all SNAP female S.
Weight: 2.75 g
Height: 11.7 mm
diameter: 18.7 mm
material: PA66GF15
Material thickness: 2.8 - 4.0 mm
Static breaking load N: 19.62 N.
Static breaking load KG: 2.00 kg
colour: black
Assembly: Screw thread
The smallest parts of the SNAP fastener solutions are primarily suitable for textile applications or low loads: e.g. as a pocket fastener for small pockets, as a collar fastener or for attaching smaller accessories. These fasteners are very compact and inconspicuous, but are not suitable for larger loads, such as connecting two pieces of luggage. Please note that the resilience and suitability of the SNAP closures depends on the size of the components and the customer-specific application on the end product.
*Not suitable for safety-relevant applications.
